Electrical Components Locations & Connector End Views -- TT QUATTRO
>>
Comp. LOC. Vehicle Cabin Modules
>>

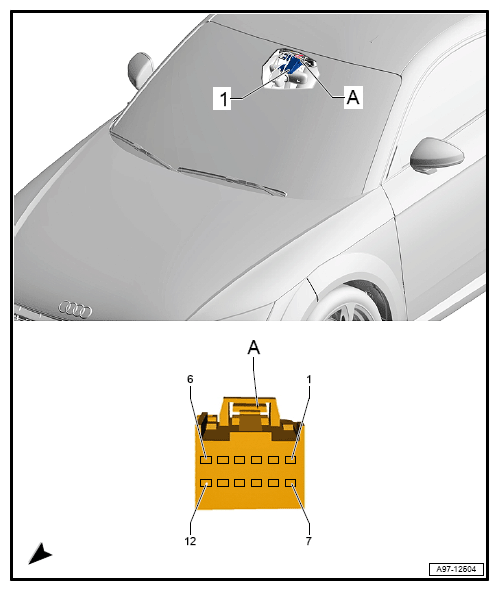

Driver Assistance Systems Front Camera -R242-
>>
Driver Assistance Systems Front Camera -R242- Location
Driver Assistance Systems Front Camera -R242- Location
1
- Driver assistance systems front camera -R242-
A
- 12-Pin Connector -T12b-, black
