Windshield Height Adjustment: Notes

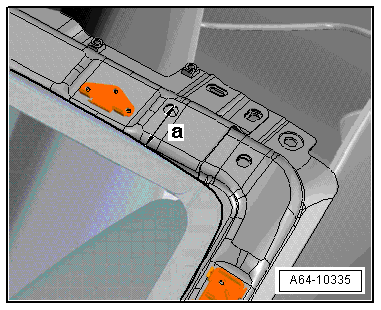

Fig 1: Identifying Distance From Edge Of Window To Left & Right Holes In Roof Frame, Dimension -A- = 43.5 Mm

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the window glass -1- from side to side and adjust it to dimension -a- = 43.5 mm to the hole in the roof frame -2-.

-- Secure the window glass from sliding out using an adjusting wedge on the bottom edge of the glass.

-- Install the retaining strip for the seal and secure the window glass with adhesive tape.
