Can-Bus Control Module Connector End View (J916, T9)
Can-Bus Control Module Connector End View (J916, T9)

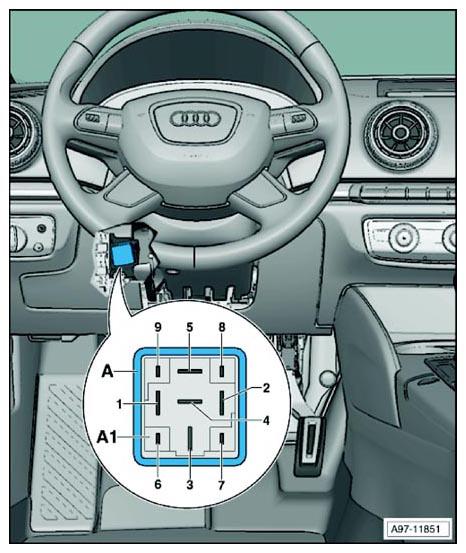

Fig 1: CAN-Bus Control Module Connector End View (J916, T9)
Courtesy of AUDI OF AMERICA, LLC
A
CAN-Bus Control Module -J916-
A1
9-Pin Connector -T9-
