Overview - Central Valve: Notes

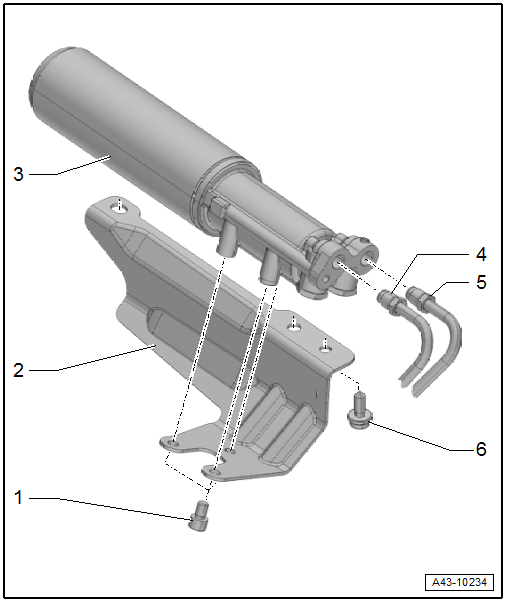

Fig 1: Exploded View Of Central Valve
GWWA43-10234Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 20 Nm
  2. Bracket
  3. Central Valve
    • The DRC system consists of two separate hydraulic systems. The central valves are connected diagonally to the applicable shock absorber.
    • Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
  4. DRC Line to Rear Shock Absorber
    • 14 Nm
    • Green marking at left
    • Blue marking at right
  5. DRC Line to Front Shock Absorber
    • 14 Nm
    • Yellow marking at left
    • White marking at right
  6. Bolt
    • 20 Nm
