Electronic Damping Control Module Connector End View (J250, T47A)

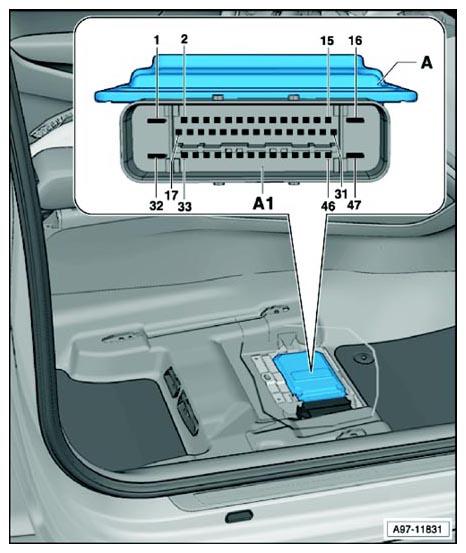

Fig 1: Electronic Damping Control Module Connector End View (J250, T47a)
G10360234Courtesy of AUDI OF AMERICA, LLC
A Electronic Damping Control Module -J250-
A1 47-Pin Connector -T47a-, black
