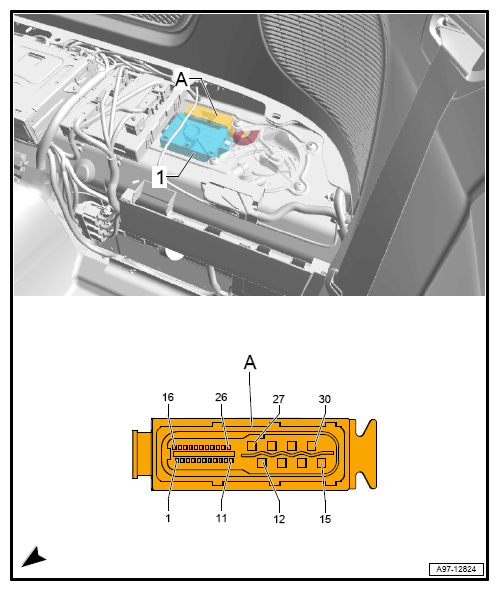

Electromechanical Parking Brake Control Module -J540-, Location

  1. 1  - Electro-Mechanical Parking Brake Control Module -J540-
  2. A  - 30-Pin Connector -T30A-, Black
G12778167Courtesy of AUDI
