Amplifier For Telephone -R86-, Connector Views

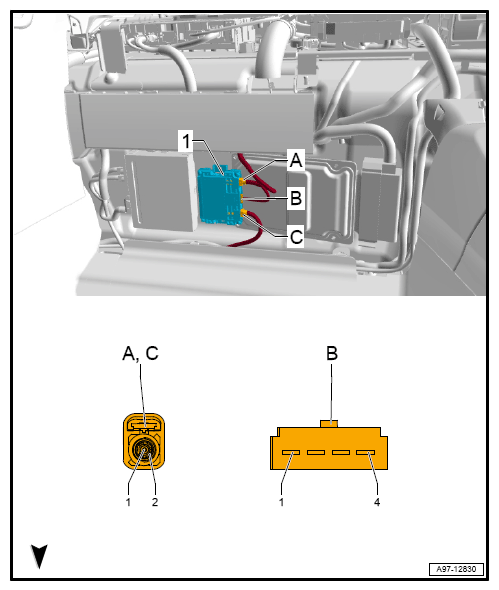

4-PIN CONNECTOR -T4P-

G12778160Courtesy of AUDI
T4P (B) Designation
1 Terminal 30, from Fuse Carrier 2 ST2 in Fuse Panel FD SD
2 Terminal 31, to 35 Ground Connection (below front passenger's seat)
3 Control Module for Information Electronics 1 J794
4
