Left And Right Front Speaker -R2- / -R3-, Removing And Installing, 9VS: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the side speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

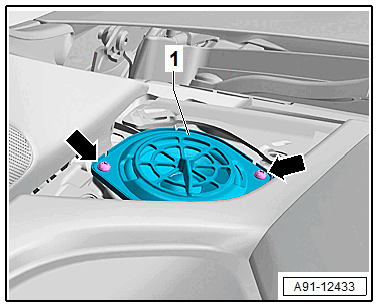

-- Remove the screws -arrows- from the Left Front Speaker -R2- -1- and remove the Left Front Speaker -R2- -1- upward.

GWWA91-12433Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector from the Left Front Speaker -R2- -1-.
