Transmission, Transporting: Procedure

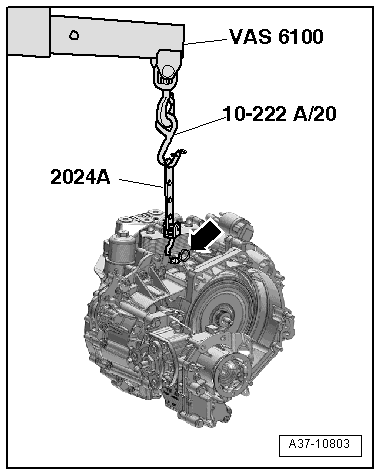

GWWA37-10803Courtesy of AUDI OF AMERICA, LLC

-- Attach the Engine Sling: 2024 A  hooks to the transmission lifting eyes and secure it with the securing pin -arrow-.

-- Hook the Shop Crane: VAS 6100  with the Engine Support Bridge - Special Hook (2 pc.): 10-222A/20  on the Engine Sling - Engine Bracket: 2024 A /1  .

CAUTION:

Risk of damaging transmission oil cooler when transporting.

  • Guide transmission when transporting.
