Overview Selector Lever Handle

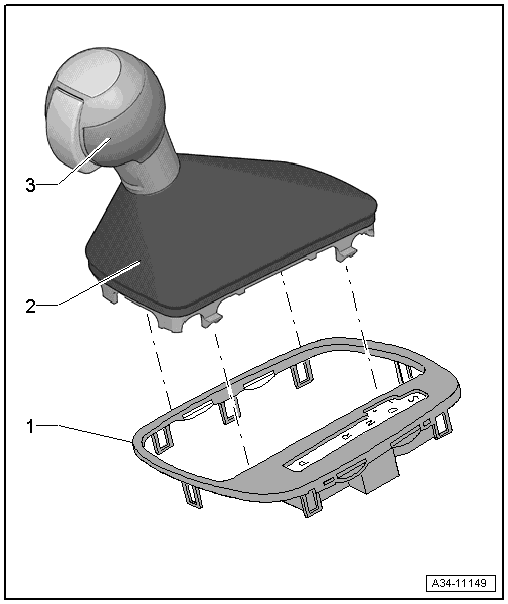

Fig 1: Selector Lever Handle Exploded View

Courtesy of AUDI OF AMERICA, LLC

Cover Frame with Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and Installing, refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
Selector Lever Boot
- Removing and installing: together with -item 3- OVERVIEW SELECTOR LEVER HANDLE.
Selector Lever Handle
- Removing and installing, refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
