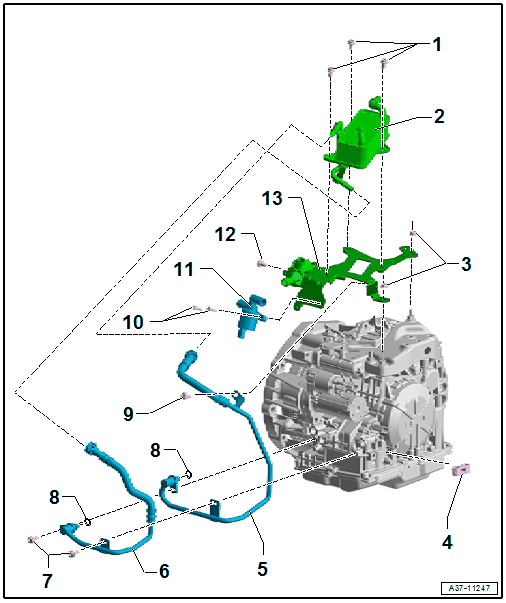

Overview - ATF Circuit
- Bolt
- 9 Nm
- ATF Cooler
- Removing and installing, refer to ATF COOLER, REMOVING AND INSTALLING .
- Nut
- Observe tightening sequence
- Spacer
- For ATF lines on the transmission
- After installing clip the ATF lines in the bracket.
- ATF Line, Supply
- Attached to the ATF cooler with a "quick release coupling"
- Replace if leaking
- Removing and installing, refer to ATF PIPES, REMOVING AND INSTALLING .
- ATF Pipe Return
- Attached to the ATF cooler with a "quick release coupling"
- Replace if leaking
- Removing and installing, refer to ATF PIPES, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- O-Ring
- Coat with ATF
- Bolt
- 20 Nm
- For ATF lines on the bracket for the ATF cooler
- Bolt
- 9 Nm
- Solenoid Valve
- Remove the ATF filter bracket for removing and installing, while doing this do not open the coolant hoses.
- Bolt
- 24 Nm
- For the bracket/ATF cooler on the transmission
- Observe tightening sequence
- ATF Cooler Bracket
- Removing and installing, refer to AUTOMATIC TRANSMISSION FLUID BRACKET, REMOVING AND INSTALLING .

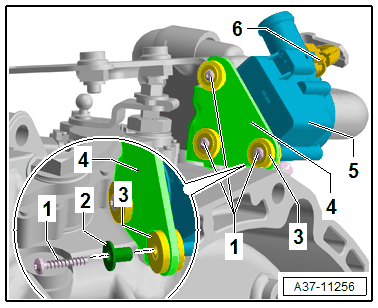

- Overview - return-flow pump on the ATF cooler bracket refer to the illustration below.
- Bolt; 1.5 Nm
- Sleeve
- Rubber grommet
- ATF cooler bracket
- Return-Flow Pump
- Connector
