Power steering Control Module Connector End View (J500, T6x, T2ag, T3z)

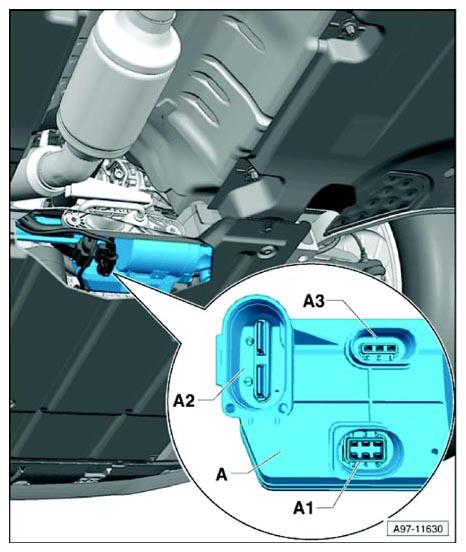

Fig 1: Power Steering Control Module Connector End View (J500, T6x, T2ag, T3z)
G10360298Courtesy of AUDI OF AMERICA, LLC
A Power steering Control Module -J500-
A1 6-ABS Control -T6x- black
A2 Double Connector -T2ag- black
A3 3-Pin Connector -T3z- black
