Fuel Pump (FP) Control Module Connector End View (J538, T5c)

Below reat seat.

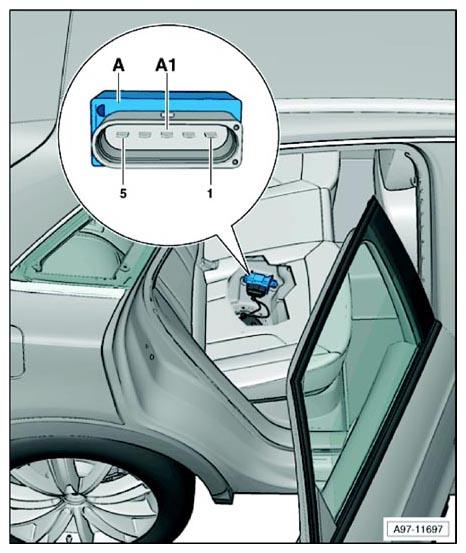

Fig 1: Fuel Pump (Fp) Control Module Connector End View (J538, T5c)
G10360332Courtesy of AUDI OF AMERICA, LLC
A Fuel Pump (FP) Control Module -J538-
A1 6-Pin Connector -T5c-, black
