Front Heated Seats Control Module Connector End View (J774, T8z)

Behind the center consol.

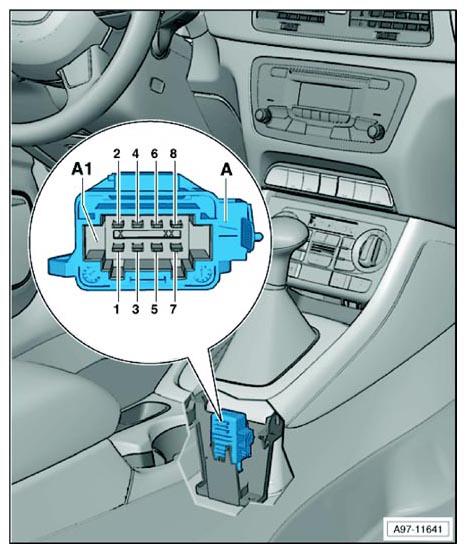

Fig 1: Front Heated Seats Control Module Connector End View (J774, T8z)
G10360309Courtesy of AUDI OF AMERICA, LLC
A Front Heated Seats Control Module -J774-
A1 8-Pin Connector -T8z-, black
