All-Wheel Drive Control Module Connector End View (J492, T2ax, T8y)

Behind side trim, in left luggage compartment.

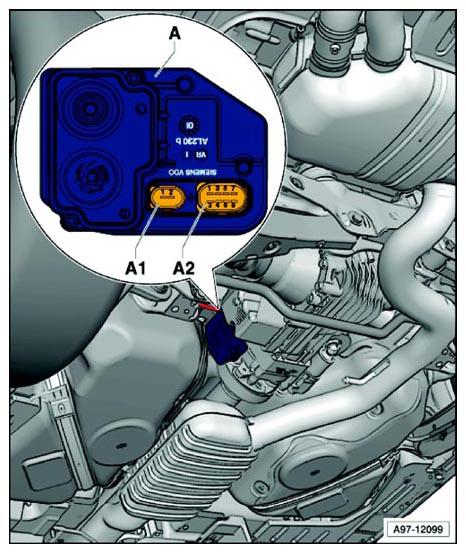

Fig 1: All-Wheel Drive Control Module Connector End View (J492, T2ax, T8y)

Courtesy of AUDI OF AMERICA, LLC

A	All-Wheel Drive Control Module -J492-
A1	Double Connector -T2ax-, black
A2	8-Pin Connector -T8y-, black
