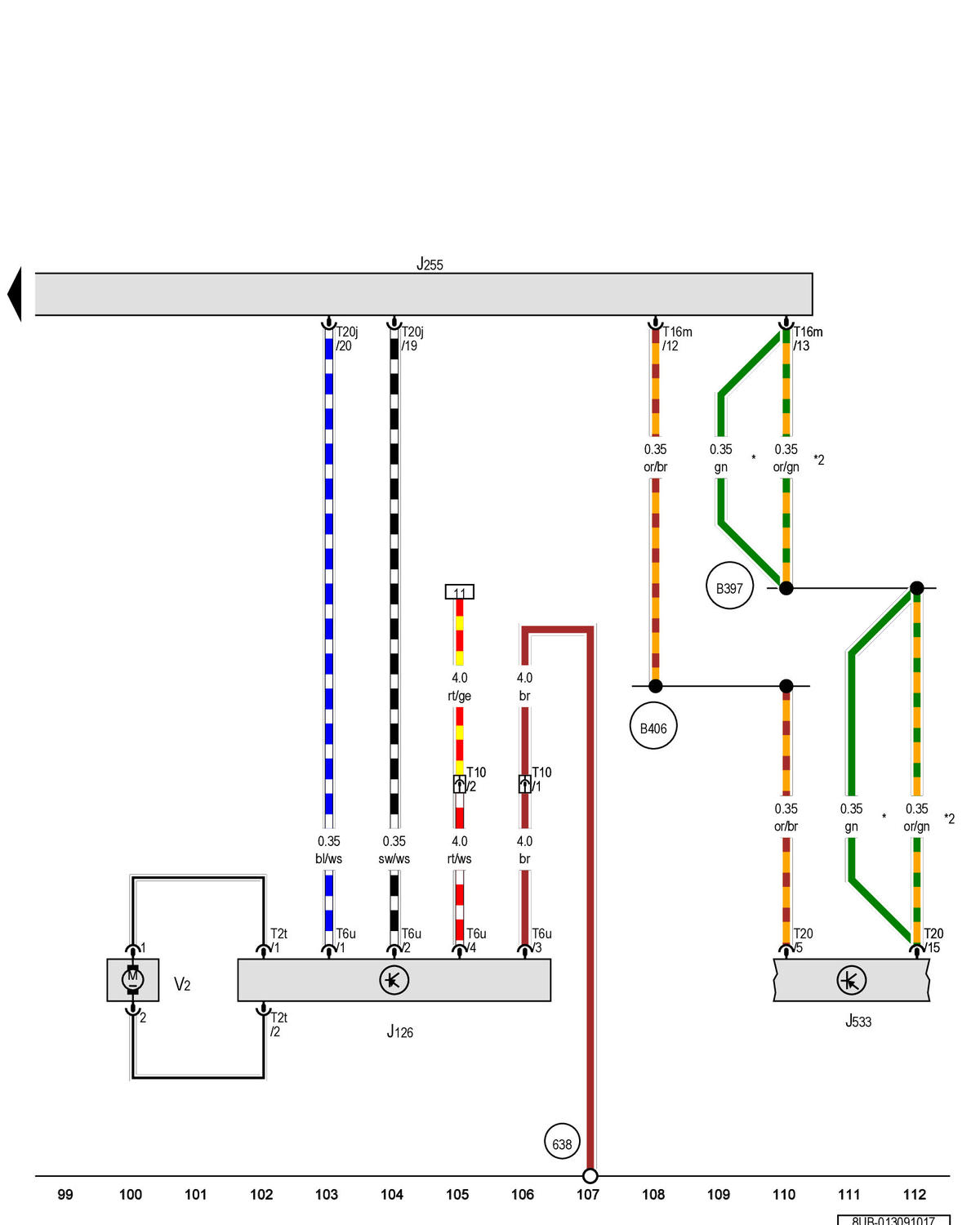

Fresh Air Blower Control Module, CLIMATRONIC Control Module, Data Bus On Board Diagnostic Interface, Fresh Air Blower
J126 Fresh Air Blower Control Module
J255 Climatronic Control Module
J533 Data Bus on Board Diagnostic Interface
T2t 2-Pin Connector
T6u 6-Pin Connector
T10 10-Pin Connector, On the Fresh Air Blower
T16m 16-Pin Connector
T20 20-Pin Connector
T20j 20-Pin Connector
V2 Fresh Air Blower
(638) Ground Connection on Right A-Pillar
(B397) Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
(B406) Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
* From November 2016
*2 Through October 2016
