Home >> Audi >> 2017 >> A6 Quattro Competition >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Diagram (Engine(S): CREC, CREH) >> Wiring Diagram >> Brake Lamp Switch, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module >> Notes

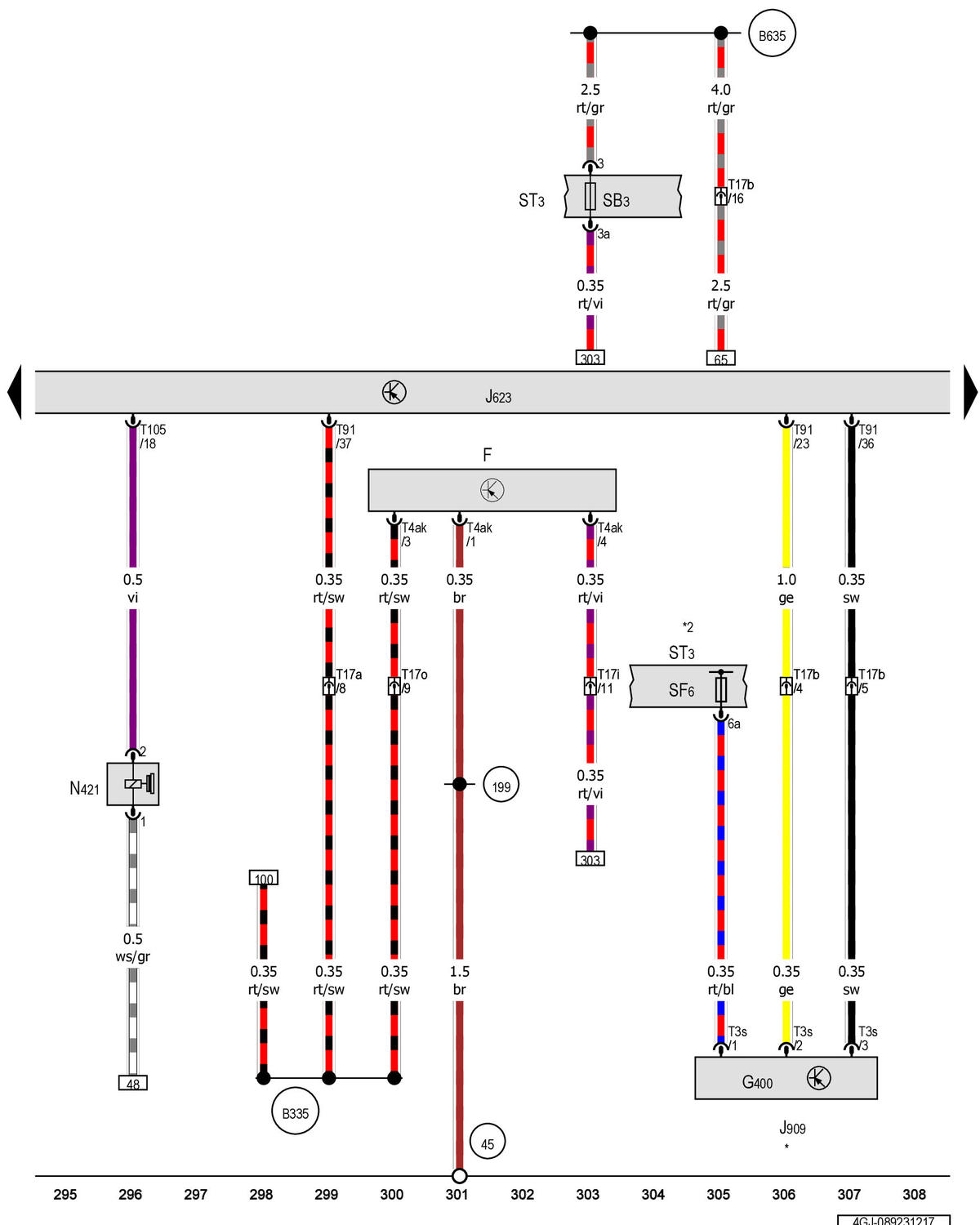

Brake Lamp Switch, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW4GJ-089231217

Courtesy of AUDI OF AMERICA, LLC
