Rear Lid Control Module -J605- Connector Views

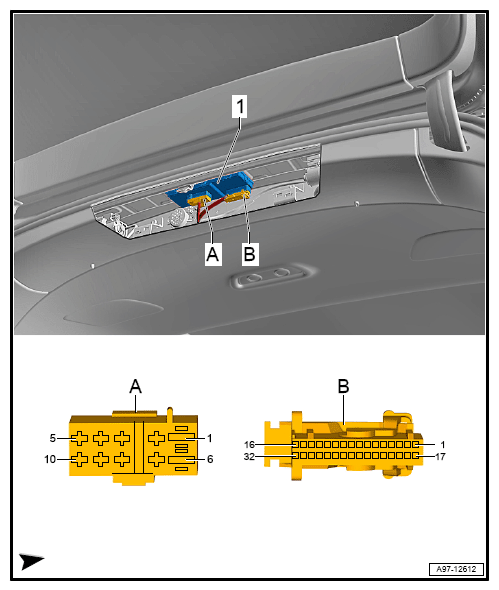

10-pin connector -T10q- (A)/32-pin connector -T32e- (B)
| T10q (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Rear lid motor 1 V444 |
| 3 | Rear lid motor 1 V444 |
| 4 | Rear lid motor 1 V444 |
| 5 | Rear Lid Closing Assist Motor V382 |
| 6 | Terminal 31 |
| 7 | |
| 8 | Luggage compartment cover motor1 V473 |
| 9 | Rear lid motor 2 V445 |
| 10 | Rear Lid Closing Assist Motor V382 |
| T32e (B) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 | Rear lid warning buzzer H32 |
| 6 | Luggage compartment cover motor 1 V473 |
| 7 | Luggage compartment cover motor 1 V473 |
| 8 | |
| 9 | |
| 10 | Rear lid motor 1 V444 |
| 11 | |
| 12 | |
| 13 | Locking mechanism button in the rear lid E806 |
| 14 | Locking mechanism button in the rear lid E806 Rear Lid Lock Button (in luggage compartment) E406 |
| 15 | |
| 16 | |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | Rear lid warning buzzer H32 |
| 22 | |
| 23 | Luggage compartment cover motor 1 V473 |
| 24 | |
| 25 | |
| 26 | Rear lid motor 1 V444 |
| 27 | Rear lid motor 1 V444 |
| 28 | Rear lid motor 1 V444 |
| 29 | Luggage compartment cover motor 1 V473 |
| 30 | |
| 31 | Comfort System CAN-Bus Low |
| 32 | Comfort System CAN-Bus High |
