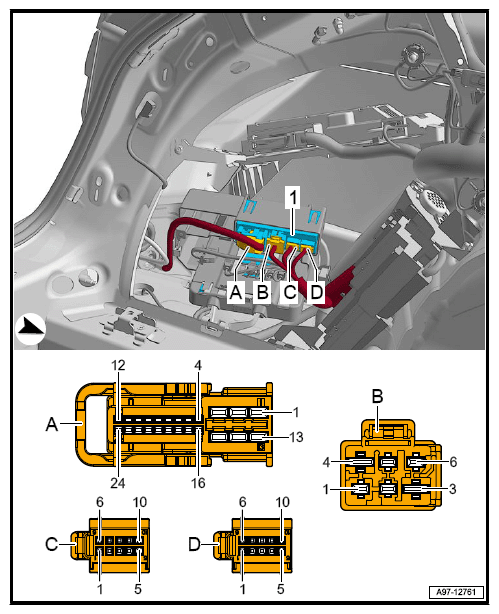

Towing Recognition Control Module -J345- Location

  1. 1 - Towing Recognition Control Module -J345-
  2. A - 24-Pin Connector -T24-, black
  3. B - 6-Pin Connector -T6e-, black
  4. C - 10-Pin Connector -T10i-, black
  5. D - 10-Pin Connector -T10k-, red
G12767564Courtesy of AUDI OF AMERICA, LLC
