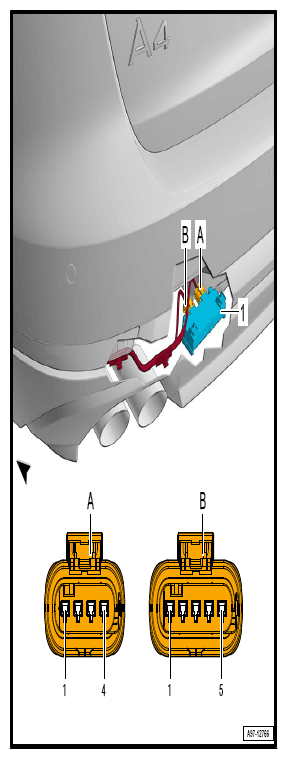

Rear Lid Opening Control Module -J938- Connector Views
4-pin connector -T4bs- (A)/5-pin connector -T5bd- (B)
| T4bs (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Terminal 31 |
| 3 | Data-Bus Wire (LIN-Bus) |
| 4 | |
| T5bd (B) | Designation |
|---|---|
| 1 | Power rear lid opener sensor G750 |
| 2 | Power rear lid opener sensor G750 |
| 3 | |
| 4 | Power rear lid opener sensor 2 G760 |
| 5 | Power rear lid opener sensor 2 G760 |
