Comfort System Central Control Module -J393- Connector Views, T20E, T32D

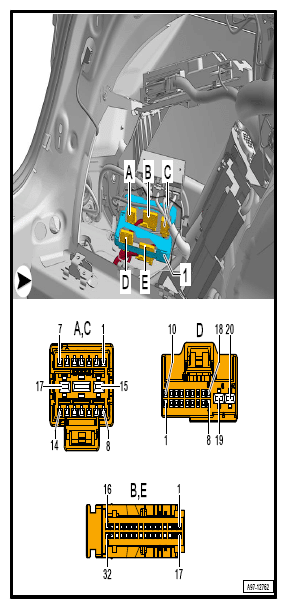

20-pin connector -T20e- (D)/32-pin connector -T32d- (E)
| T20e (D) | Designation |
|---|---|
| 1 | Access/start system antenna 1 in vehicle interior R138 |
| 2 | Left Access/Start Authorization Antenna R200 |
| 3 | Left Access/Start Authorization Antenna R200 |
| 4 | |
| 5 | |
| 6 | |
| 7 | Access/start system antenna in luggage compartment R137 |
| 8 | Access/start system antenna in luggage compartment R137 |
| 9 | |
| 10 | Access/start system antenna 1 in vehicle interior R138 |
| 11 | Rear Lid Central Locking System Motor V53 |
| 12 | Right Rear Outside Door Handle Touch Sensor G418 |
| 13 | Left Rear Outside Door Handle Touch Sensor G417 |
| 14 | Right Front Outside Door Handle Touch Senso G606 |
| 15 | Left Front Outside Door Handle Touch Sensor G605 |
| 16 | |
| 17 | |
| 18 | |
| 19 | |
| 20 |
| T32d (E) | Designation |
|---|---|
| 1 | Comfort System CAN-Bus Low |
| 2 | Comfort System CAN-Bus High |
| 3 | |
| 4 | |
| 5 | Fuel Level Sensor G |
| 6 | Fuel Level Sensor 2 G169 |
| 7 | |
| 8 | |
| 9 | Fuel Level Sensor G |
| 10 | Access/start authorization button E408 |
| 11 | |
| 12 | Left Rear Window Breakage Sensor G183 Right Rear Window Breakage Sensor G184 Rear Window Glass Breakage Sensor G304 |
| 13 | |
| 14 | |
| 15 | Trunk Lid Alarm Switch F123 |
| 16 | |
| 17 | |
| 18 | |
| 19 | |
| 20 | Left Rear Level Control System Sensor G76 |
| 21 | Fuel Level Sensor G |
| 22 | Fuel Level Sensor 2 G169 |
| 23 | |
| 24 | |
| 25 | Access/start authorization button E408 |
| 26 | Access/start authorization button E408 |
| 27 | |
| 28 | Trunk Lock/Alarm/Central Locking Switch F124 |
| 29 | |
| 30 | Rear Lid Handle Unlock Switch E234 |
| 31 | |
| 32 |
