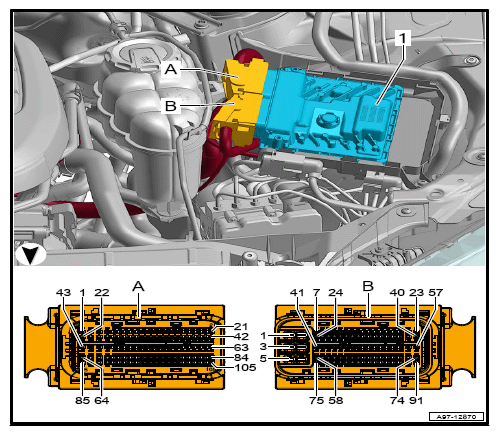

Engine Control Module (ECM) -J623- Location (196-Pin)

  1. 1 - Engine Control Module (ECM) -J623-
  2. A - 105-Pin Connector -T105-, black
  3. B - 91-Pin Connector -T91-, black
G12767478Courtesy of AUDI OF AMERICA, LLC
