Roof Electronics Control Module -J528- Connector Views

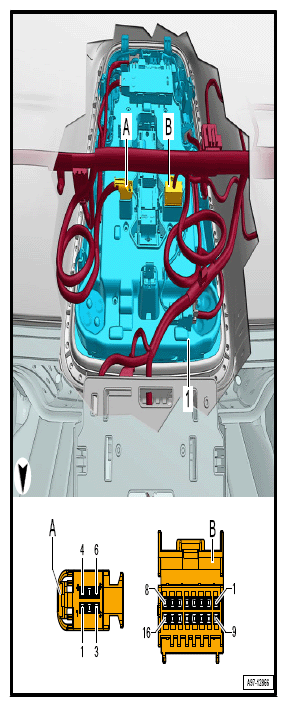

6-pin connector -T6bc- (A)/16-Pin Connector -T16p- (B)
| T6bc (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Terminal 58 |
| 3 | |
| 4 | |
| 5 | Terminal 31 |
| 6 | LIN-Bus |
| T16p (B) | Designation |
|---|---|
| 1 | Left Rear Reading Lamp -W11- |
| 2 | Left Rear Reading Light Button -E454- |
| 3 | Terminal 31 |
| 4 | |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | Right Rear Reading Lamp -W12- |
| 10 | Right Rear Reading Light Switch -E455- |
| 11 | Terminal 58 |
| 12 | |
| 13 | |
| 14 | |
| 15 | |
| 16 |
