NOX Sensor Control Module 2 -J881- Connector Views

5-pin connector -T5x- (B)

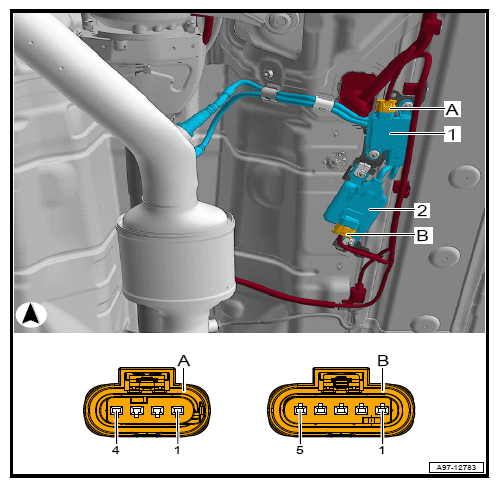

G12767543Courtesy of AUDI OF AMERICA, LLC
T5x (B) Designation
1 Terminal 87
2 Terminal 31
3 CAN-Bus powertrain, Low
4 CAN-Bus powertrain, High
5 Terminal 31
