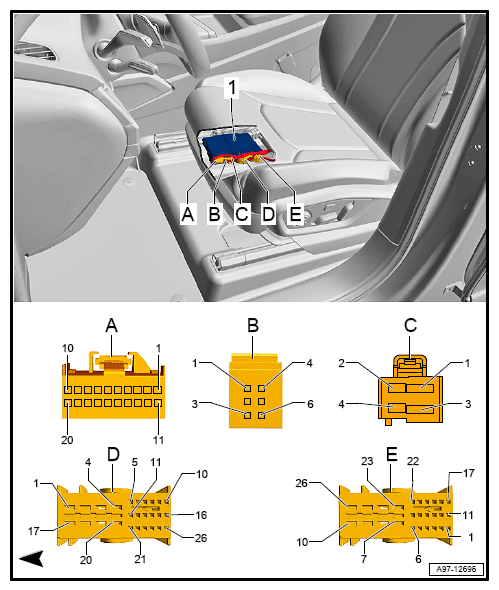

Memory Seat/Steering Column Adjustment Control Module -J136- Location

  1. 1 - Memory Seat/Steering Column Adjustment Control Module -J136-
  2. A - 20-Pin Connector -T20a-, black
  3. B - Not used
  4. C - 4-Pin Connector -T4aa-, black
  5. D - 26-Pin Connector -T26b-, blue
  6. E - 26-Pin Connector -T26-, white
G12767496Courtesy of AUDI OF AMERICA, LLC
