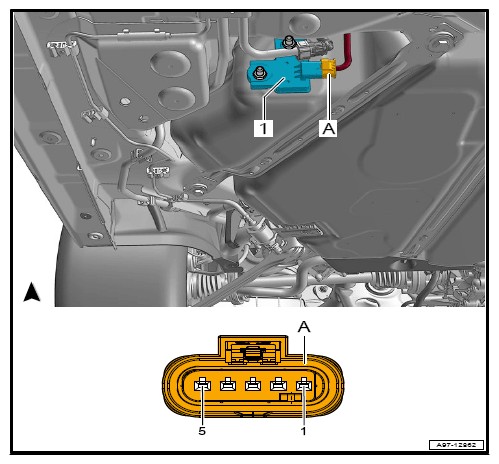

Fuel Tank Leak Detection Control Module -J909- Connector Views
5-pin connector -T5sm- (A)
 Courtesy of AUDI OF AMERICA, LLC
|
| T5sm (A) |
Designation |
| 1 |
Fuel Tank Pressure (FTP) Sensor G400 |
| 2 |
Engine Control Module (ECM) J623 |
| 3 |
Engine Control Module (ECM) J623 |
| 4 |
Terminal 30 |
| 5 |
Fuel Tank Pressure (FTP) Sensor G400 |
