Electronic Steering Column Lock Control Module -J764- Connector Views

4-pin connector -T4x- (A)

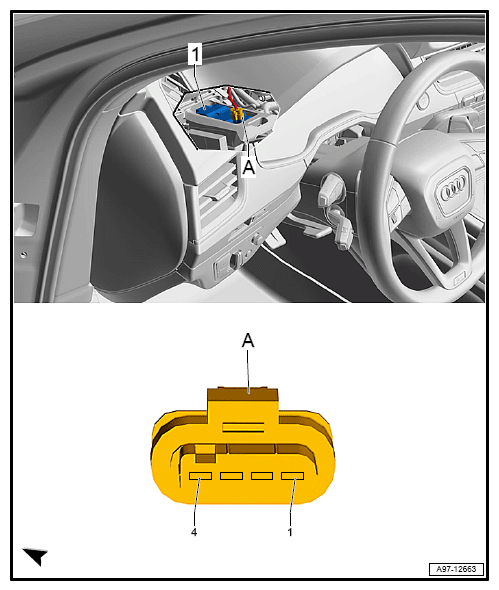

G12767523Courtesy of AUDI OF AMERICA, LLC
T4x (A)
1 Comfort System CAN-Bus High
2 Comfort System CAN-Bus Low
3 Terminal 30
4 Terminal 31
