Close Range Communication Control Module -J1169-, Connector View

Double Connector -T2nc-/Double Connector -T2nb-

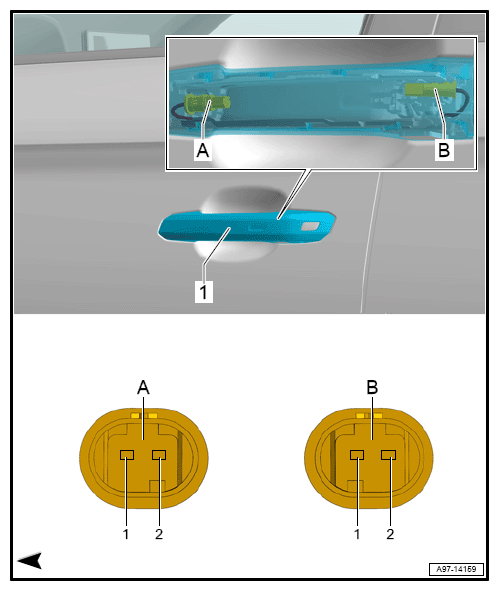

G12767552Courtesy of AUDI OF AMERICA, LLC
T2nc (A) Designation
1 CAN-H
2 CAN-L
T2nb (B) Designation
1 VS
2 GND
