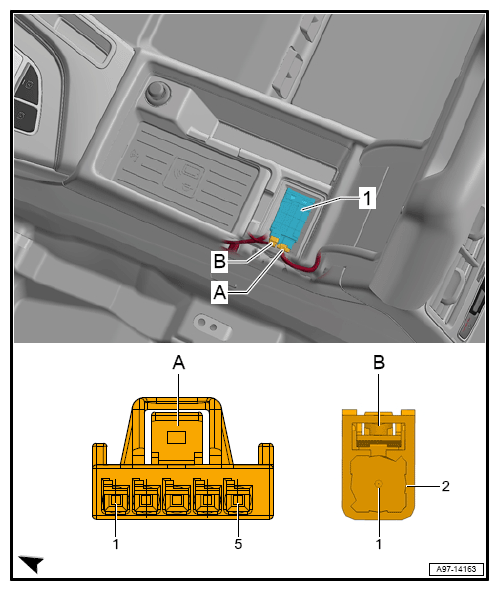

Close Range Communication Control Module 2 -J1170-, Connector View
5-Pin Connector -T5cc-/Double Connector -T2nf-
 Courtesy of AUDI OF AMERICA, LLC
|
| T5cc (A) |
Designation |
| 1 |
KL30 |
| 2 |
CAN-H |
| 3 |
CAN-L |
| 4 |
GND |
| 5 |
SIG, Telephone Baseplate -R126- |
| T2nf (B) |
Designation |
| 1 |
SIG |
| 2 |
(S) |
