Chip Card Reader Control Module J676

NOTE: Illustration shows location for left-hand drive models. In right-hand drive models, installation is mirror-inverted.

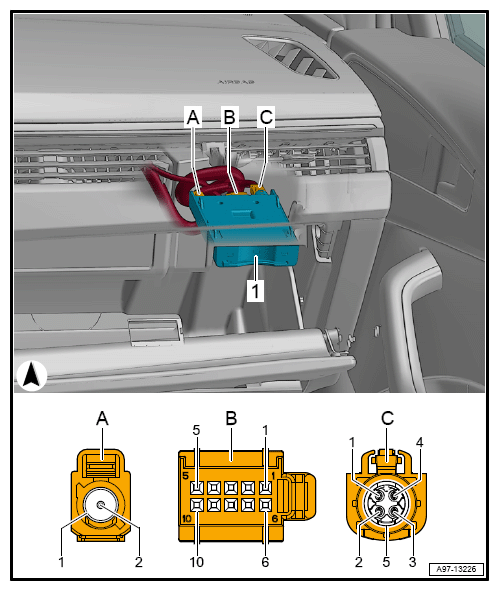

  1. 1 - Chip Card Reader Control Module -J676-
  2. A - Double Connector -T2ig-, yellow
  3. B - 10-Pin Connector -T10x-, black
  4. C - 4-Pin Connector -T4fu-, brown
    • USB connection
G12767526Courtesy of AUDI OF AMERICA, LLC
