Center Console Assembly Overview, Storage Net

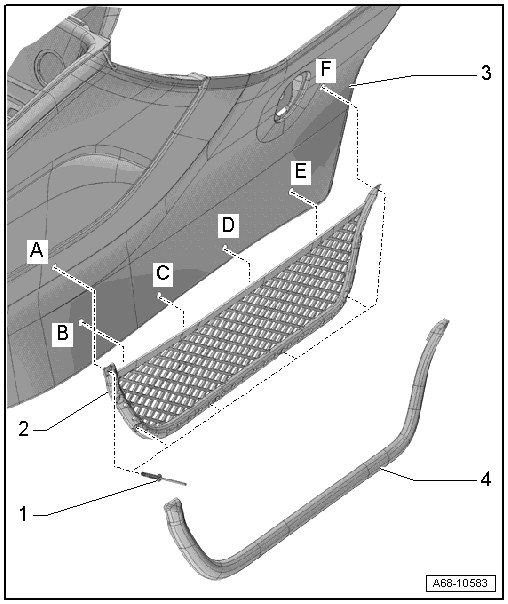

Fig 1: Exploded View Of Center Console Assembly Overview, Storage Net

Courtesy of AUDI OF AMERICA, LLC

1. Blind Rivet
   • Quantity: 6
   • Riveted with Pop Rivet Pliers:VAS5072  .
2. Storage net
   • Secured on the center console driver side
   • Removing and installing, refer to STORAGE NET, REMOVING AND INSTALLING .
3. Center Console
   • Create the openings -A to F- afterword to 3.5 mm diameter.
   • Add the storage net in the new center console, refer to STORAGE NET, ADDING IN THE NEW CENTER CONSOLE .
4. Storage Net Trim
   • Removing and installing, refer to STORAGE NET, REMOVING AND INSTALLING .
   • Attach upper trim to the frame and press on it until it audibly engages
