Seat Trim/Control Module/Compressor Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Unclip the seat functions control module and lay it aside with the wires connected. Refer to SEAT FUNCTION CONTROL MODULES - J136- / -J521-, REMOVING AND INSTALLING .

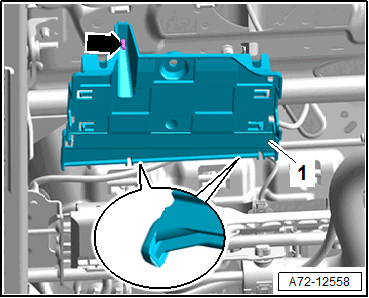

Standard Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Press the pin -arrow- out of the bracket toward the seat cushion, for example using an upholstery needle.

-- Remove the pin that was pressed out from the seat pan.

-- Unclip the bracket support from the seat pan using a flat-head screwdriver.

-- Detach the bracket -1- at the rear of the seat pan and remove it.

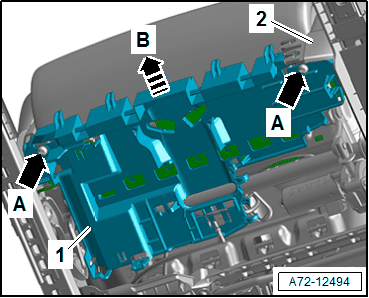

Sport Seat:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the pneumatic system compressor. Refer to PNEUMATIC SYSTEM COMPRESSOR, REMOVING AND INSTALLING .

-- Remove the front seat trim. Refer to FRONT SEAT TRIM, REMOVING AND INSTALLING .

-- Remove the screws -A arrows-.

-- Press the seat side trim -2- to the side slightly.

-- Remove the seat trim/control module/compressor bracket -1- forward from the guides -arrow B-.
