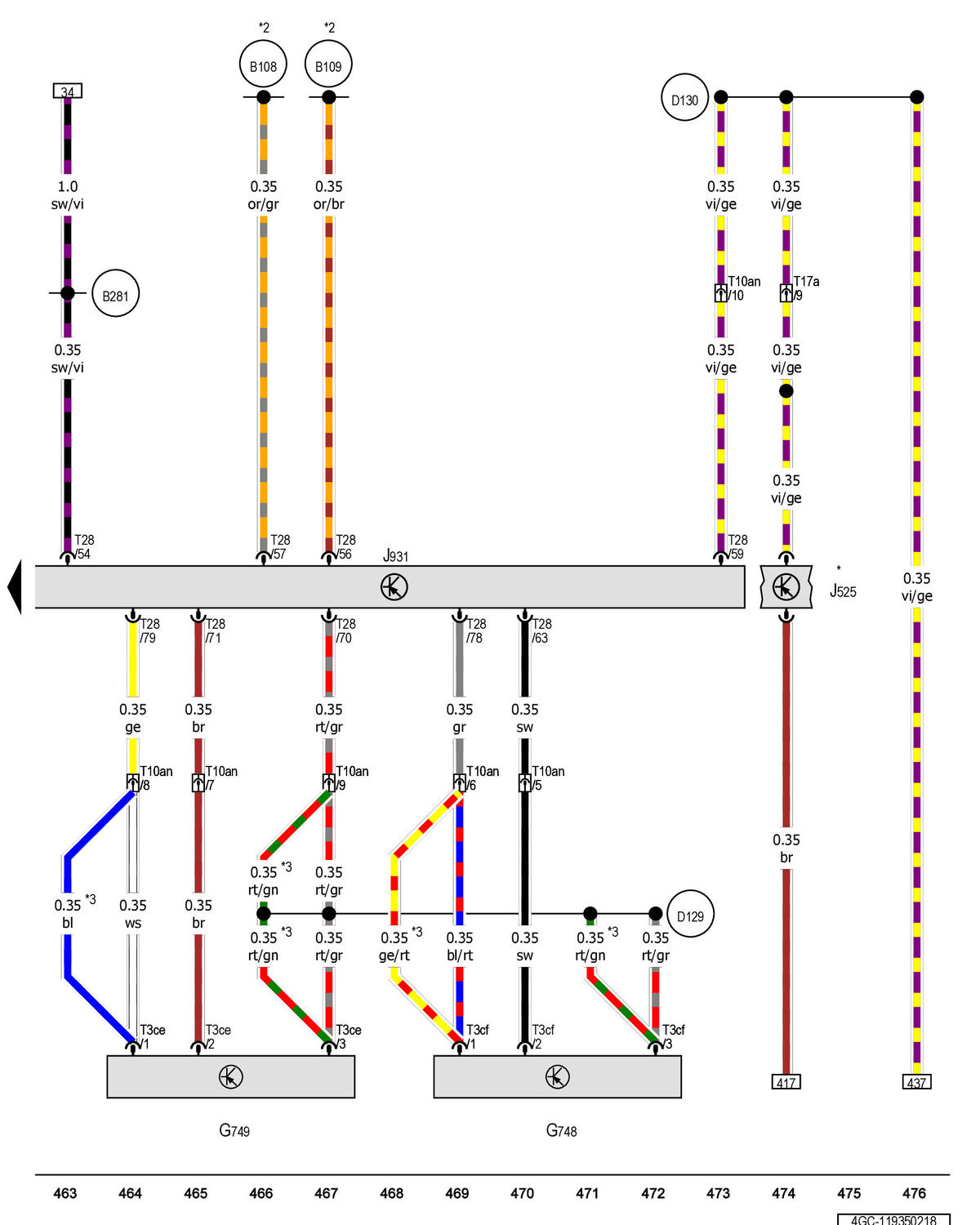

Assembly Mount Sensor 1, Assembly Mount Sensor 2, Assembly Mount Control Module: Notes

GWW4GC-119350218

Courtesy of AUDI OF AMERICA, LLC
