6.2.2 Distance Regulation Control Module - J428- Retaining Plate, Removing And Installing, Version 1: Installing

Install in the reverse order of removal. Note the following:

NOTE:

Replace the quick release.
The stud bolts in the bracket are pre-set. If necessary, correct the setting.
If the stud bolts were removed, then the clips on the distance regulation control module must be replaced. Refer to 6.2.6 Clip on Distance Regulation Control Module - J428-, Replacing, Version 1 . .

Place the control module on a soft and clean surface.

Courtesy of AUDI OF AMERICA, LLC
Measure the dimension -a- at all stud bolts using the - VAS6335- and correct if necessary.
- Dimension -a- = 44.3 mm.
Courtesy of AUDI OF AMERICA, LLC

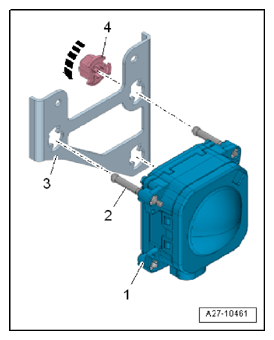

Position the retaining plate -3- onto the distance regulation control module -1-.
Carefully press the new quick release -4- onto the stud bolt -2-.
Turn the quick release clockwise onto the retaining plate to the stop in direction of -arrow-.
