Component Location Overview - Dynamic Ride Control

Courtesy of AUDI OF AMERICA, LLC

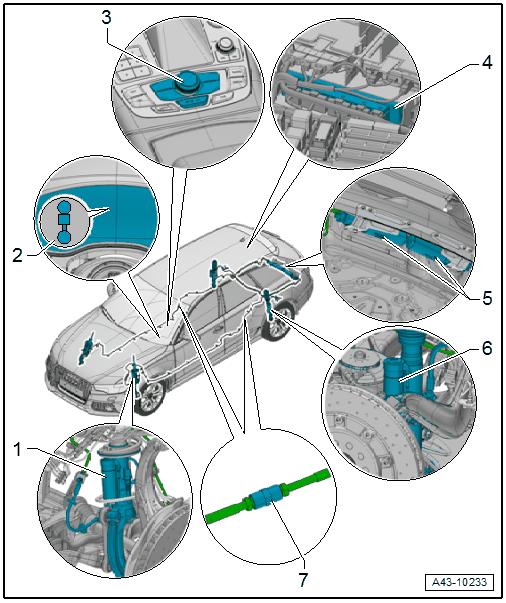

1. Front Suspension Strut with Extract/Fill Valve. Refer to Front Suspension Strut .
   • Additional component with an integrated electric motor - vehicle with variable damping
2. Indicator Lamp
   • Vehicle with variable damping
3. Audi Drive Select Controls
   • Vehicle with variable damping
4. Electronic Damping Control Module -J250-
   • Vehicle with variable damping
   • Removing and installing. Refer to Electronic Damping Control Module -J250-, REMOVING AND INSTALLING .
5. Central Valves
   • Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
   • The DRC system consists of two separate hydraulic systems. The central valves are connected diagonally to the applicable shock absorber.
6. Rear Shock Absorber with Extract/Fill Valve. Refer to Rear Shock Absorber .
   • Additional component with an integrated electric motor - vehicle with variable damping
7. Connection to the Right/Left Front Suspension Strut
   • 14 Nm
