Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

Fig 1: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear noise insulation -2-, refer to REAR NOISE INSULATION .

-- Disconnect the connector -2-.

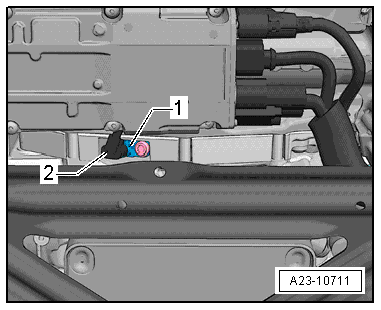

Fig 2: Engine Speed Sensor -G28- Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and then remove the Engine Speed Sensor -G28- downward.
