Tire Repair Kit, Expiration Date, Checking

NOTE:

The tire sealant bottle is located behind the left side trim panel in the luggage compartment.

-- Remove the left side trim panel in the luggage compartment.

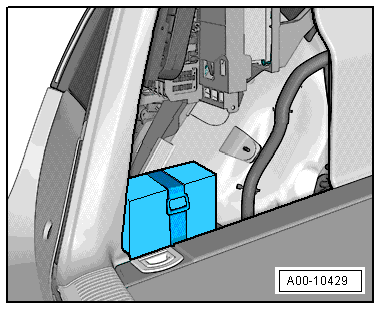

Fig 1: Locating Tire Repair Kit
GWWA00-10429Courtesy of AUDI OF AMERICA, LLC

-- Check the availability of the A/C compressor.

-- Loosen the velcro strap and remove the air compressor: the tire sealant bottle is located behind that.

-- Remove the bottle and check the expiration date -arrow-.

Fig 2: Identifying Durability Date In Tire Repair Kit
GWWA02-0248Courtesy of AUDI OF AMERICA, LLC
NOTE:

Replace a bottle that has already been used.

If expiration date has passed, replace bottle.
