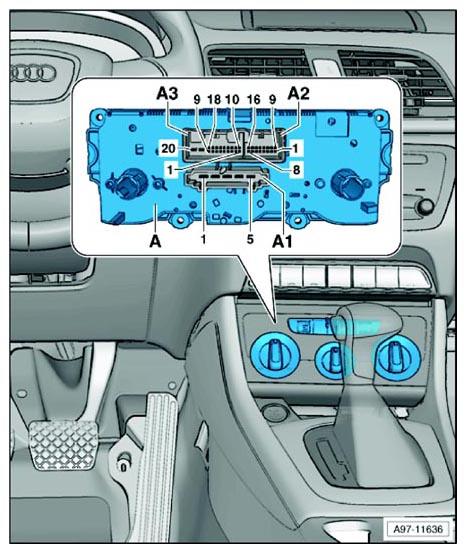

A/C Control Module Connector End View (J301, T5e, T16o, T20b)
In center instrument panel.
Courtesy of AUDI OF AMERICA, LLC
| A |
A/C Control Module -J301- |
| A1 |
5-Pin Connector -T5e-, black |
| A2 |
16-Pin Connector -T16o-, black |
| A3 |
20-Pin Connector -T20b-, black |
