Telephone BASEPLATE -R126-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove The Center Console. Refer to OVERVIEW - CENTER CONSOLE / CENTER CONSOLE, REMOVING AND INSTALLING .

-- Release and disconnect the connectors from the Telephone Baseplate -R126-.

NOTE:

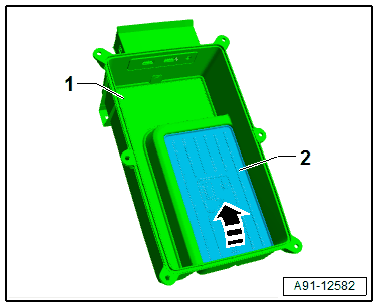

In the illustration the storage compartment is shown without the center console.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the Telephone Baseplate -R126- -2- in the direction of -arrow- out of the storage compartment.
