Subwoofer -R211-, Removing And Installing, Sedan: Removing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

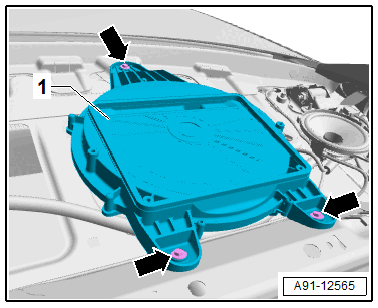

-- Release and disconnect the connector from the Subwoofer -R211- -1-.
-- Remove the bolts -arrows- from the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward.
