Subwoofer -R211-, Removing And Installing, AVANT: Removing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the luggage compartment floor.

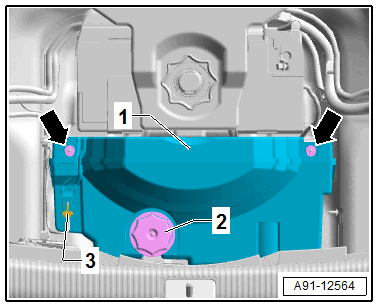

-- Release and disconnect the connector -3- from the Subwoofer -R211- -1-.
-- Remove the bolt -2- from the Subwoofer -R211- -1-.
-- Remove the nuts -arrows- from the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward out of the spare tire well.
