Rearview Camera -R189-, Removing And Installing, Sedan: Removing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.
-- Remove the rear lid lower trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING / REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

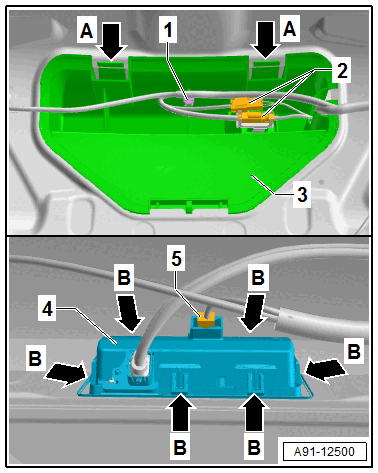

-- Release and disconnect the connectors -2-.
-- Remove the cable bracket -1- from the anti-theft protection -3-.
-- Release the retainers -arrows A-.
-- Remove the anti-theft protection -3- from the rear lid.
-- Release and disconnect the connector -5-.
-- Release the catches -arrows B-.
-- Remove the handle button -4- from the rear lid.
