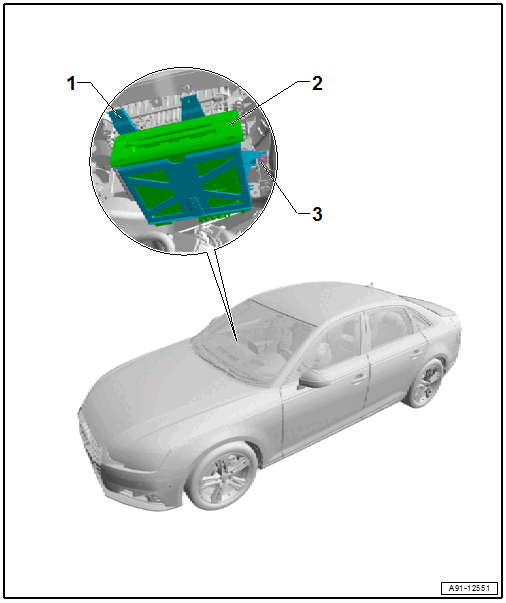

Component Location Overview - Navigation System
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Bolt
- 3 Nm
- Quantity: 2
- Information Electronics Control Module 1 -J794-
- Connector assignment. Refer to the appropriate Wiring Diagram(s).
- Removing and installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .
