Emergency Call Module Speaker -R335-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove The Instrument Panel Cover On The Driver Side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Release and disconnect the connectors on the Emergency Call Module Speaker -R335-.

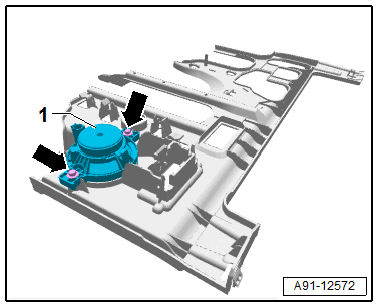

-- Remove the bolts -arrows- on the Emergency Call Module Speaker -R335- -1-.
-- Remove the Emergency Call Module Speaker -R335- -1- from the instrument panel cover.
