Information Electronics Control Module 1 -J794-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2020 Audi S4, 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, and 2019 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove any CD/DVDs and SD/SIM cards from the Information Electronics Control Module 1 -J794-.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .

The wires to the Information Electronics Control Module 1 -J794- are very short. For this reason the bracket must be removed first. With the removal of the glove compartment two bolts for the bracket are loosened.

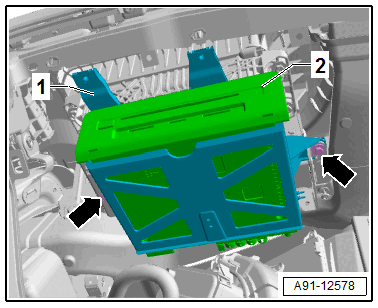

-- Remove the bolts -arrows- and fold the bracket -1- downward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794- -2-.

-- Insert the :VAS6223/9 -1- onto the MOST Bus connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the two clips from the Radio Removal Tool :T10057 into the release slots on the Information Electronics Control Module 1 -J794-.

The points at the grip eyelets of the Radio Removal Tool :T10057 face outward.
The clamps from the Radio Removal Tool :T10057 must engage.

-- Remove the Information Electronics Control Module 1 -J794- from the bracket at the :T10057 grip eyes.

-- Press the release tabs on the Information Electronics Control Module 1 -J794- and remove the :T10057 .
