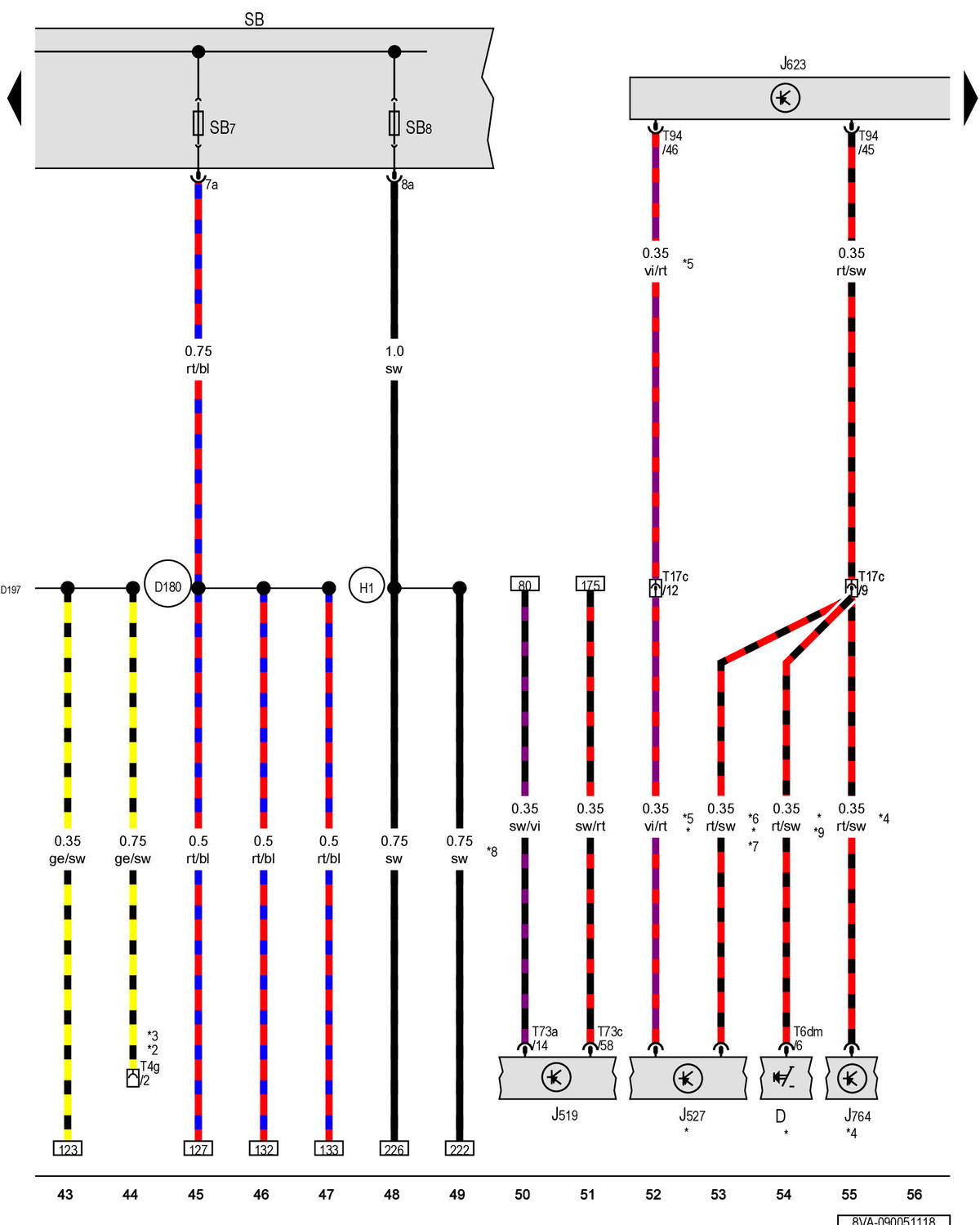

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Fuse 8 (On Fuse Panel B)

Courtesy of AUDI OF AMERICA, LLC

D

Ignition/Starter Switch

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

J527

Steering Column Electronics Control Module Type:BT, Slpdok:, Aim:BTJ527

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

J764

Electronic Steering Column Lock Control Module Type:BT, Slpdok:, Aim:BTJ764

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB7

Fuse 7 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB8

Fuse 8 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T4g

4-Pin Connector Type:BT, Slpdok:, Aim:BTT4g

T6dm

6-Pin Connector, Black

T17c

17-Pin Connector Type:BT, Slpdok:, Aim:BTT17c

T73a

73-Pin Connector

T73c

73-Pin Connector

T94

94-Pin Connector

D180

Connection 87A (in Engine/Motor Compartment Wiring Harness)

D197

Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)

H1

Positive Connection (in Oxygen Sensor Wiring Harness)

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

Radiator Fan Connection

*3

Refer to Applicable Radiator Fan Wiring Diagram

*4

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*5

For Vehicles with Cruise Control System

*6

For Vehicles Without Access/Start Authorization System

*7

Through June 2018

*8

Pre-Wired Component

*9

From July 2018
