Tire Pressure Monitoring Control Module 2 -J793-

Component Location

Behind Instrument Cluster -1-.

Pin Arrangements

G12778314Courtesy of AUDI OF AMERICA, LLC

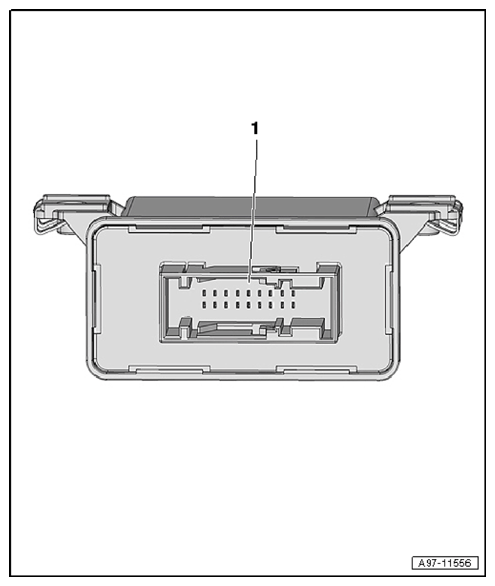

  1. 18-Pin Connector -T18C-, Black
G12778315Courtesy of AUDI OF AMERICA, LLC
