Tire Pressure Monitoring Control Module -J502-, USA: Notes

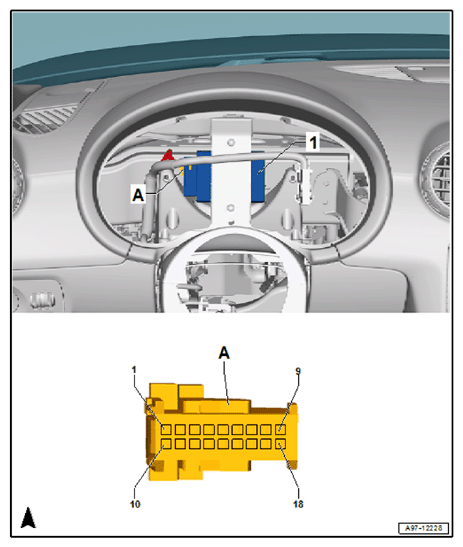

Component Location

Behind Instrument Cluster.

  1. 1  - Tire Pressure Monitoring Control Module -J502-
  2. A  - 18-Pin Connector -T18C-, Black
G12778323Courtesy of AUDI OF AMERICA, LLC
