Pin Arrangements

  1. Not Used
  2. 10-Pin Connector -T10AB-
  3. 20-Pin Connector -T20C-, Black On Wiring Harness
  4. 4-Pin Connector -T4d-, Yellow, On Wiring Harness
  5. 12-Pin Connector -T12I-
  6. 8-Pin Connector -T8F-
  7. 10-Pin Connector -T10AG-
  8. 10-Pin Connector -T10AH-

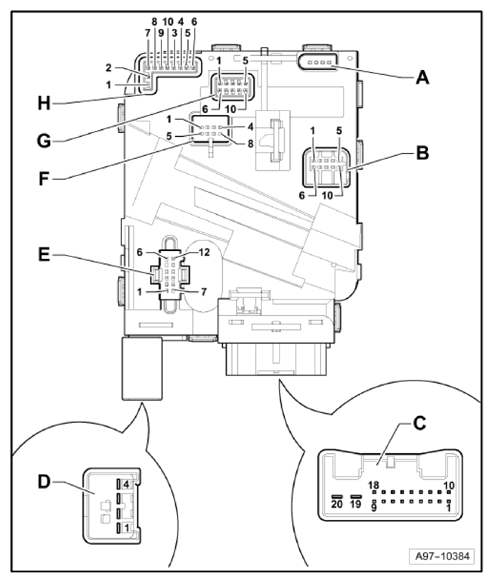

G12777877Courtesy of AUDI OF AMERICA, LLC
