Comfort System Central Control Module -J393-, Through May 2009

Component Location

In Luggage Compartment, Right-4-.

1. TV Tuner -R78-
2. Fuse panel (right luggage compartment)
3. Parking Aid Control Module -J446-
4. Comfort System Central Control Module -J393-

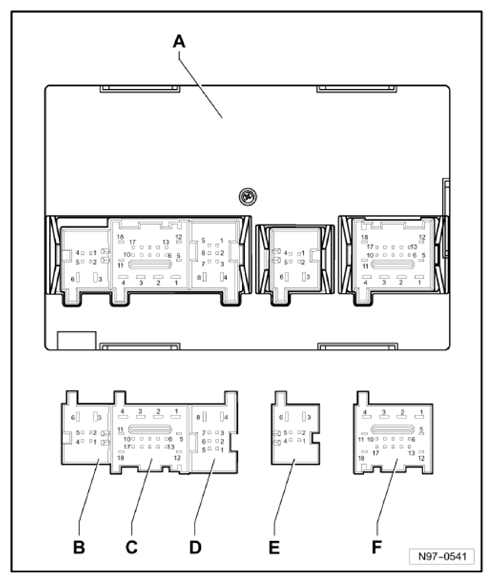

   Pin Arrangements Comfort System Central Control Module -J393-

Courtesy of AUDI OF AMERICA, LLC

1. Comfort System Central Control Module -J393-
2. Not Used
3. 18-Pin Connector -T18G-, Brown, On Wiring Harness
4. 8-Pin Connector -T8G-, Black On Wiring Harness
5. 6-Pin Connector -T6G-, Black On Wiring Harness
6. 18-Pin Connector -T18F-, Black On Wiring Harness

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → OVERVIEW OF CONTROL MODULES .
